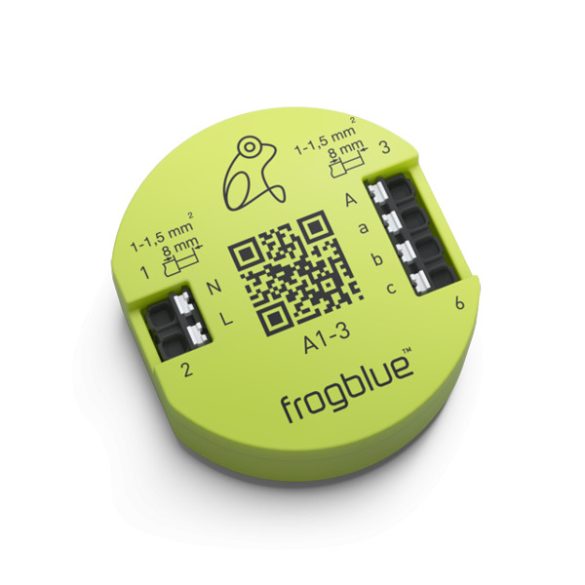

frogAct1-3

Technical data

Category	Frogs
Article description	frogAct1-3
Article number	A1-3-400.01
Type of mounting	Recess-mounted (in power socket)
Functions and power
Inputs	3 (AC 110−240 V ~)
Outputs	1 (AC 110−240 V ~)
Outputs can be dimmed	No
Min. load	LED 3 W
Max. power per output	400 W/400 VA (220−240 V ~) 200 W/200 VA (110–219 V ~)
Suitable loads	Light bulb load, electronic transformer, inductive load
Output modes	Switch
Protection category	Conforms to IP20
Integrated logic module	Yes
Integrated configuration backup	Yes
Comfort and timer function	Yes
Power measurement	Yes
Short circuit detection and notification	Yes
Electricity supply
Mains voltage	AC 110–240 V ~
Mains frequency	50 / 60 Hz
Stand-by consumption	< 220 mW
Dimensions and weight
Dimensions (L x W x H)	53 x 48 x 21 mm
Weight	30 g
Network
WLAN	No
Bluetooth	Bluetooth 4.2 Low Energy
Typical open field range	30 metres
Operation and storage
Ambient temperature	−25° to +50°C
Storage temperature	−25° to +70°C
Air humidity (during operation)	(Non-condensing)
Power connection
Type of contact	ε, MOSFET
Connection options	230 V − doorbell, lamps, power sockets etc.
Connection type	Spring-type terminal (single wire)
Lead cross-section	1 to 1.5 mm²
Stripping length	8 mm
Packaging
Package size	1 piece, 10 pieces
EAN 1 piece	4260578530408
Packaging dimensions (L x W x H), 1 piece	75 x 30 x 75 mm
Weight including packaging, 1 piece	50 g
EAN 10 pieces	4260578530415
Packaging dimensions (L x W x H), 10 pieces	78 x 80 x 316 mm
Weight including packaging, 10 pieces	550 g
