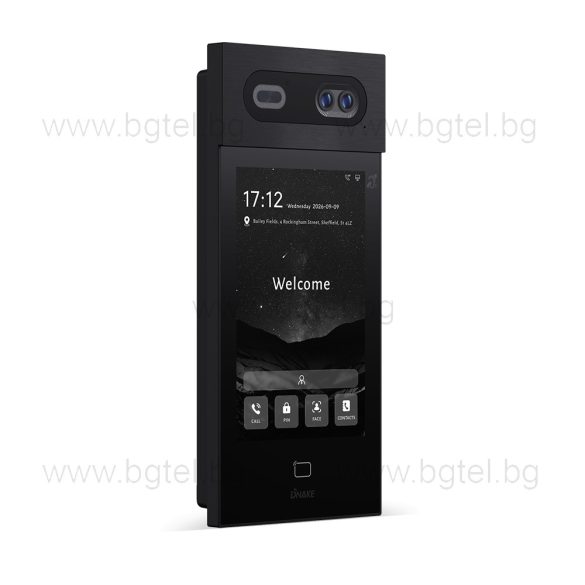

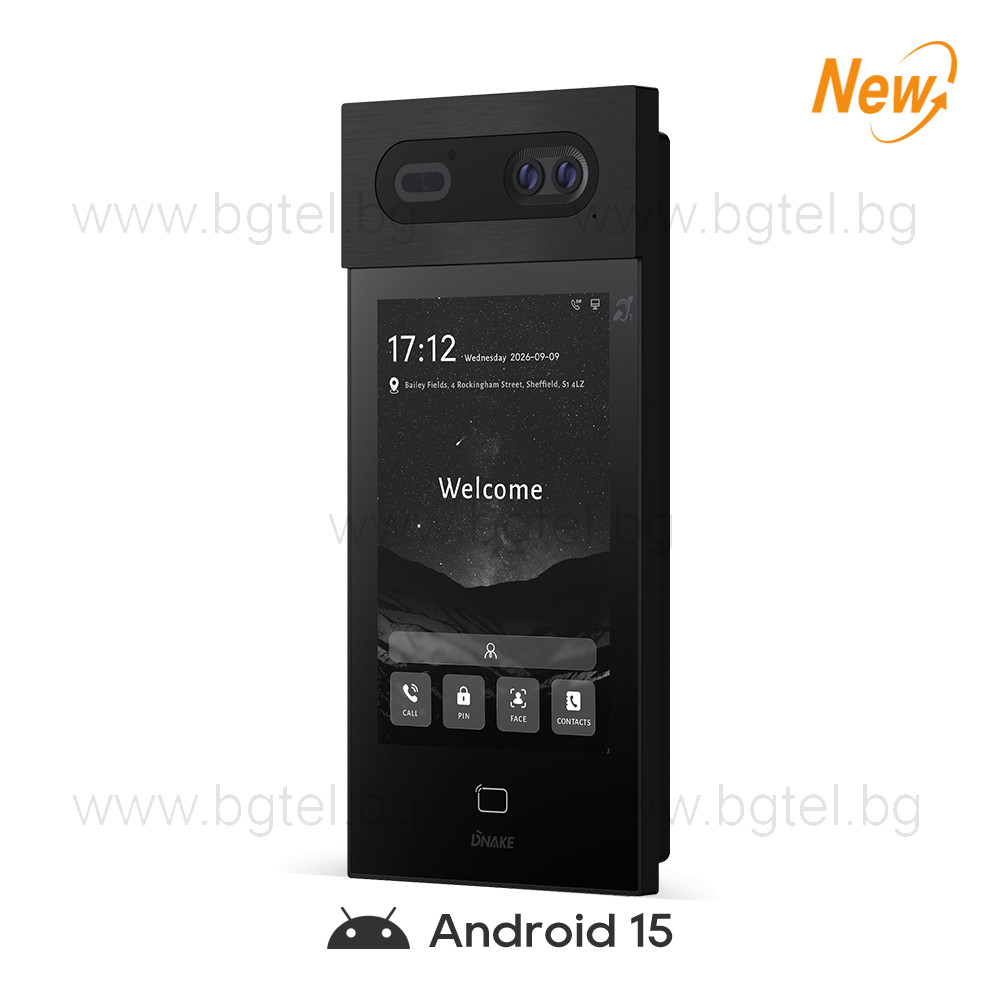

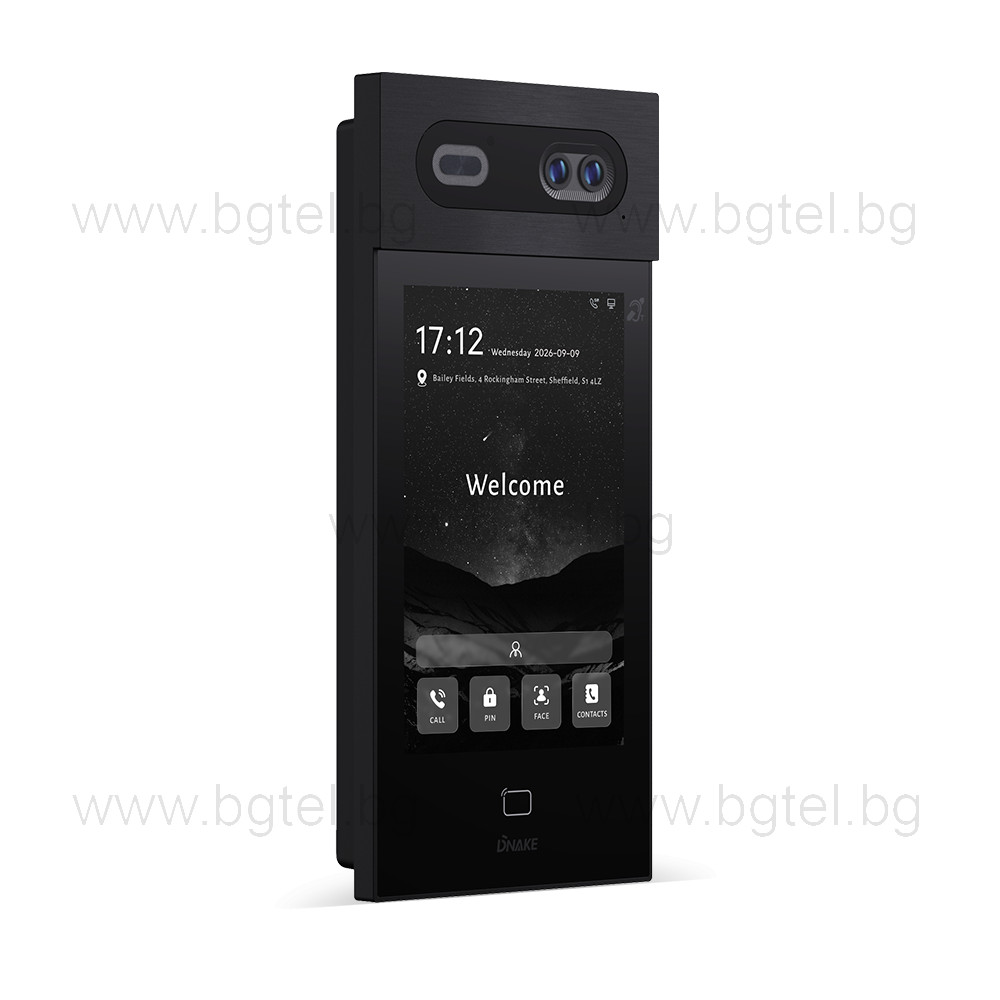

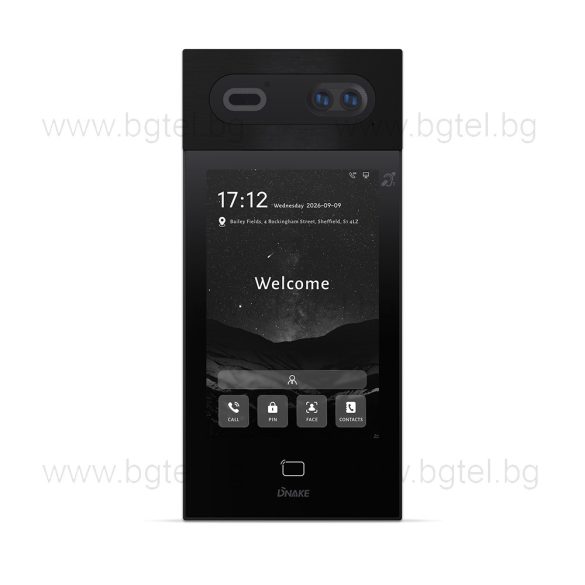

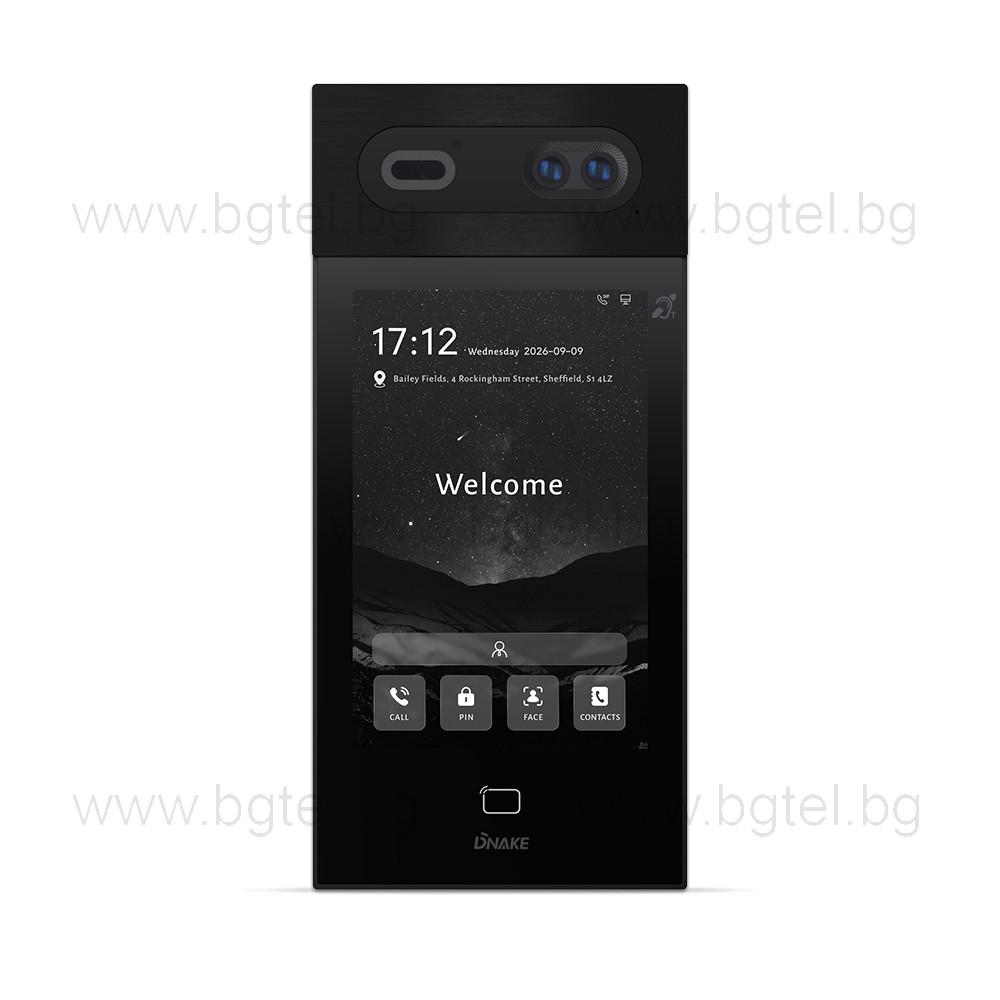

8" Android 15 ВЪНШЕН ПАНЕЛ

S617 Pro

• Powered by Android 15

• 3 lock outputs — including 1 electronic lock

• 8” color IPS LCD

• Support 20,000 users, 20,000 faces, and 100,000 cards

• Dual 2MP cameras with 120° wide angle

• WDR technology to lighten the dark areas and darken the overexposed parts of the image

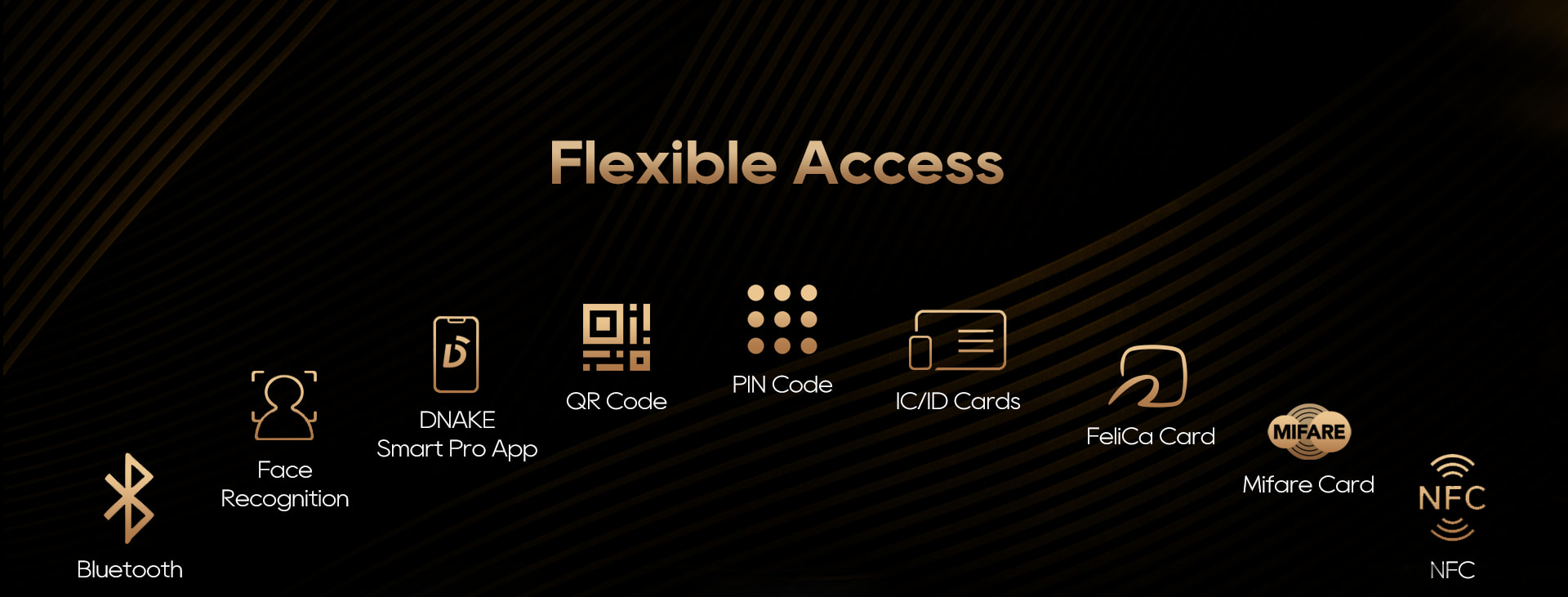

• Door entry: call, face, QR Code, Bluetooth, App, IC (13.56MHz) & ID (125kHz) card, FeliCa Card, PIN code, and more

• Secured access with encrypted card (MIFARE Plus SL1/SL3 card）

• Anti-spoofing algorithm against photos and videos

• Tamper alarm

• Support surface & flush mounting

1 022,00 €

Подробности

Отзиви

ХАРАКТЕРИСТИКИ

Подробности

Отзиви

Няма коментари!

ХАРАКТЕРИСТИКИ

Physical Property
System	Android 15
RAM	2GB
ROM	32GB
Front Panel	Aluminum
Power Supply	PoE+ (802.3at) or DC12V/2A
Camera	2MP, CMOS, Dual Cam, WDR
Bluetooth	BLE 5.0
MIFARE Plus SL1/SL3 Card	Supported
Door Entry	Face, IC (13.56MHz) & ID (125kHz) card, Felica card, PIN code, Bluetooth, QR code, NFC
IP/IK Rating	IP65/IK08
Installation	Surface Mounting & Flush Mounting
Surface Mounting Dimension	140 x 300 x 41.8 mm
Flush Mounting Dimension	140 x 300 x 60.3 mm
Working Temperature	-40℃ - +55℃
Storage Temperature	-40℃ - +70℃
Working Humidity	10%-90% (non-condensing)
Display
Display	8-inch IPS LCD
Resolution	1280 x 800
Audio & Video
Audio Codec	G.711, G.722
Video Codec	H.264
Video Resolution	up to 1920 x 1080
Viewing Angle	120°(H) / 75°(V) / 131°(D)
Light Compensation	LED white light
Networking
Protocol	Onvif, SIP, UDP, TCP, RTP, RTSP, NTP, DNS, HTTP, DHCP, IPV4, ARP, ICMP
Port
Wiegand Port	Support
Ethernet Port	1 x RJ45, 10/100 Mbps adaptive
RS485 Port	1
Relay Out	2
Lock Control	1 Electronic Lock
Reset Button	1
Input	4
