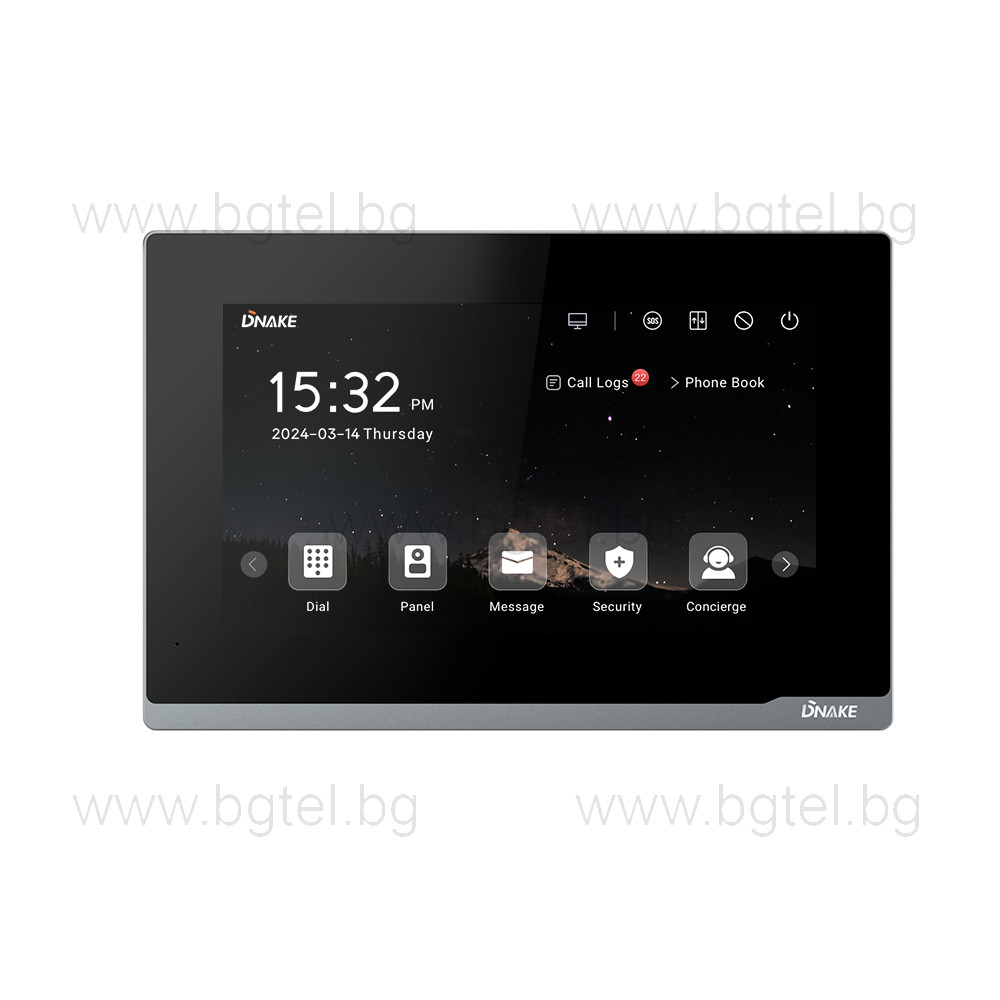

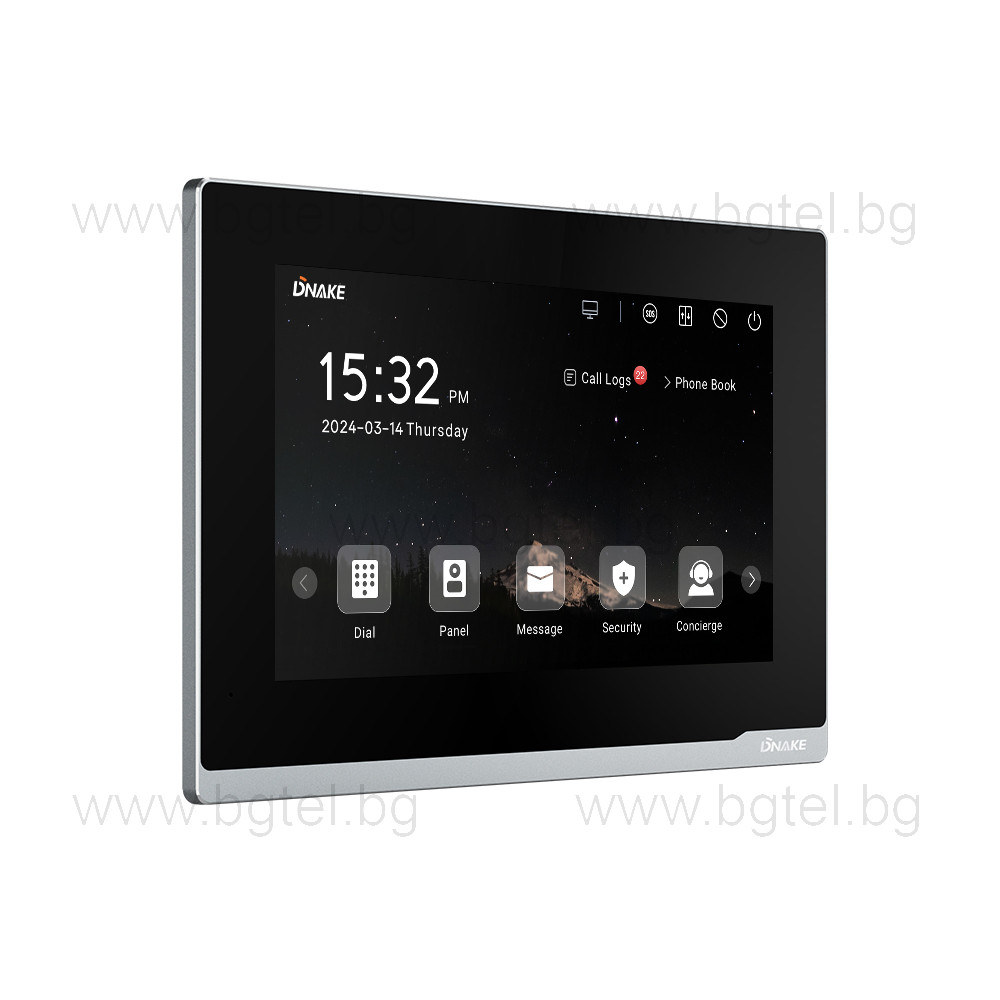

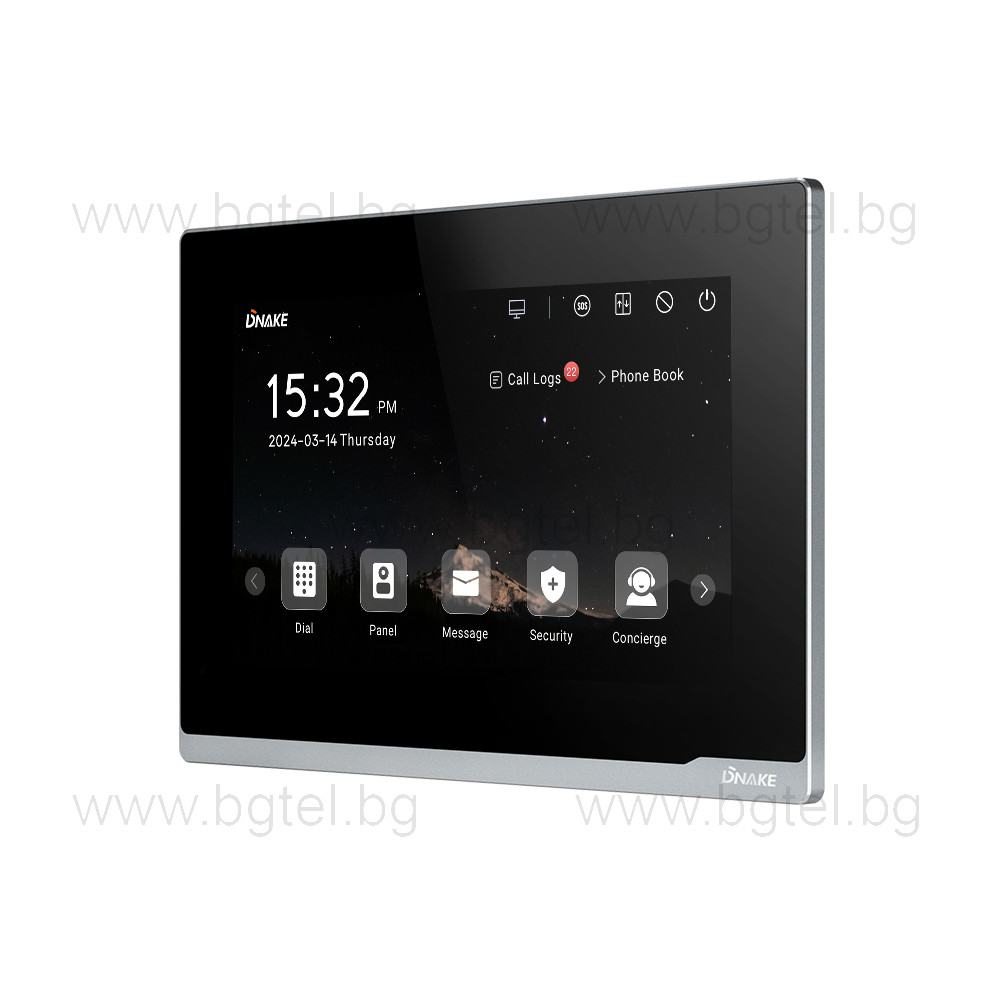

7" IP WIFI LINUX ВЪТРЕШНО ТЯЛО E217

E217

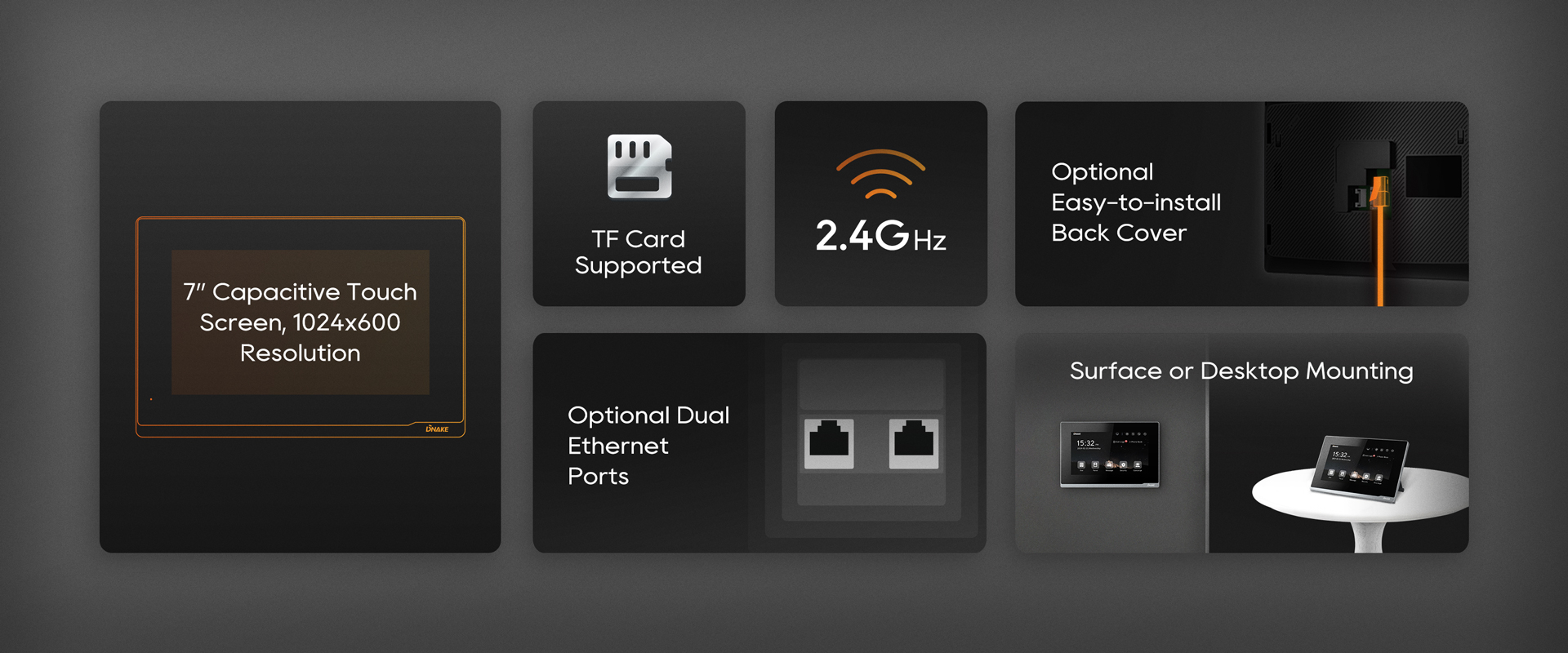

• 7” capacitive touch screen, 1024 x 600

• 8-ch alarm input, 1 x RS485

• Powered by PoE or power adapter (DC12V/2A)

• Support Wi-Fi

• Optional dual network ports

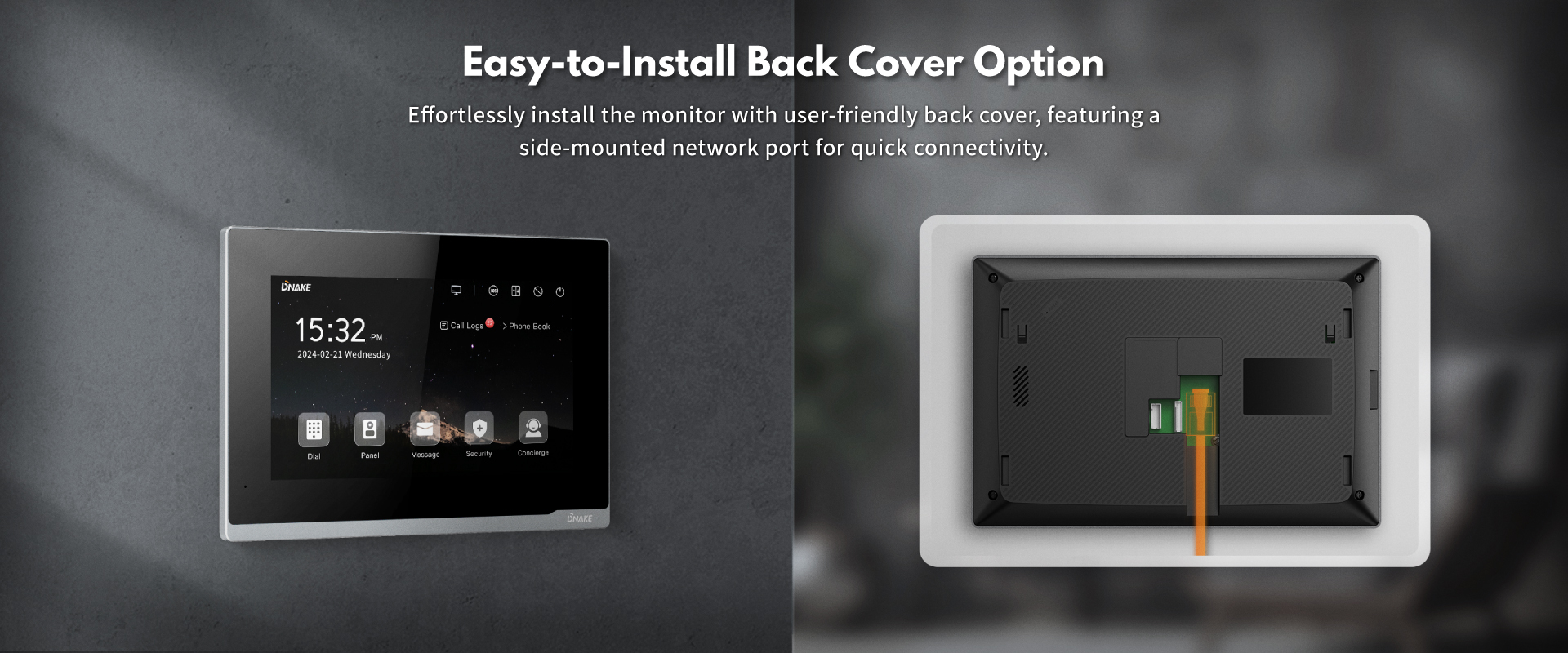

• Optional easy-to-install back cover

• Support monitoring 16 IP cameras

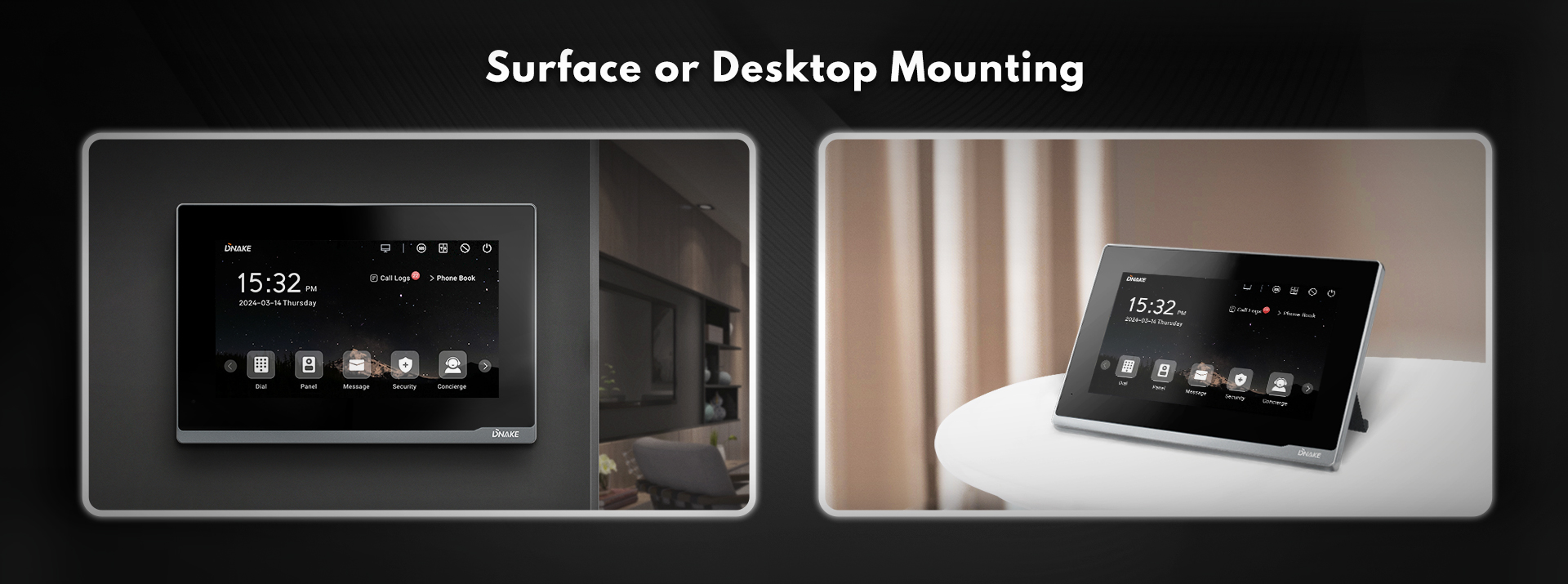

• Surface or desktop mounting

• Support TF card

• Quick installation and remote management via web interface

• Easy integration with elevator control system

135,00 €

Подробности

Отзиви

ХАРАКТЕРИСТИКИ

Подробности

Отзиви

Няма коментари!

ХАРАКТЕРИСТИКИ

Physical Property
System	Linux
Front Panel	Plastic
Power Supply	PoE (802.3af) or DC12V/2A
Standby Power	2W
Rated Power	9W
Wi-Fi	IEEE802.11 b/g/n,@2.4GHz
Installation	Surface Mounting/Desktop
Dimension	195 x 130 x 14.5mm; 195 x 130 x 21mm (with Easy-to-Install Back Cover)
Working Temperature	-10℃ - +55℃
Storage Temperature	-40℃ - +70℃
Working Humidity	10%-90% (non-condensing)
Display
Display	7-inch TFT LCD
Screen	Capacitive touch screen
Resolution	1024 x 600
Audio & Video
Audio Codec	G.711
Video Codec	H.264
Networking
Protocol	SIP, UDP, TCP, RTP, RTSP, NTP, DNS, HTTP, DHCP, IPV4, ARP, ICMP
Port
Ethernet Port	1 x RJ45, 10/100 Mbps adaptive
RS485 Port	1
Power Output	1 (12V/100mA)
Doorbell Input	8 (Use any alarm input port)
Alarm Input	8
TF Card Slot	1
